Introduction
Whether you’re dealing with a wobbly armrest, a broken caster, or simply want to give your chair a deep clean, having the right guide can make all the difference. The The Complete Office Chair Model 5T0329347 is a popular choice for its comfort and ergonomic design, but like any piece of furniture, it may require maintenance or repair over time.
This comprehensive guide serves as your go-to parts manual. We’ll walk you through understanding each component, safely disassembling and reassembling your chair, troubleshooting common problems, and finding the right replacement parts. With these clear instructions, you can extend the life of your chair and keep it in top condition for years to come.

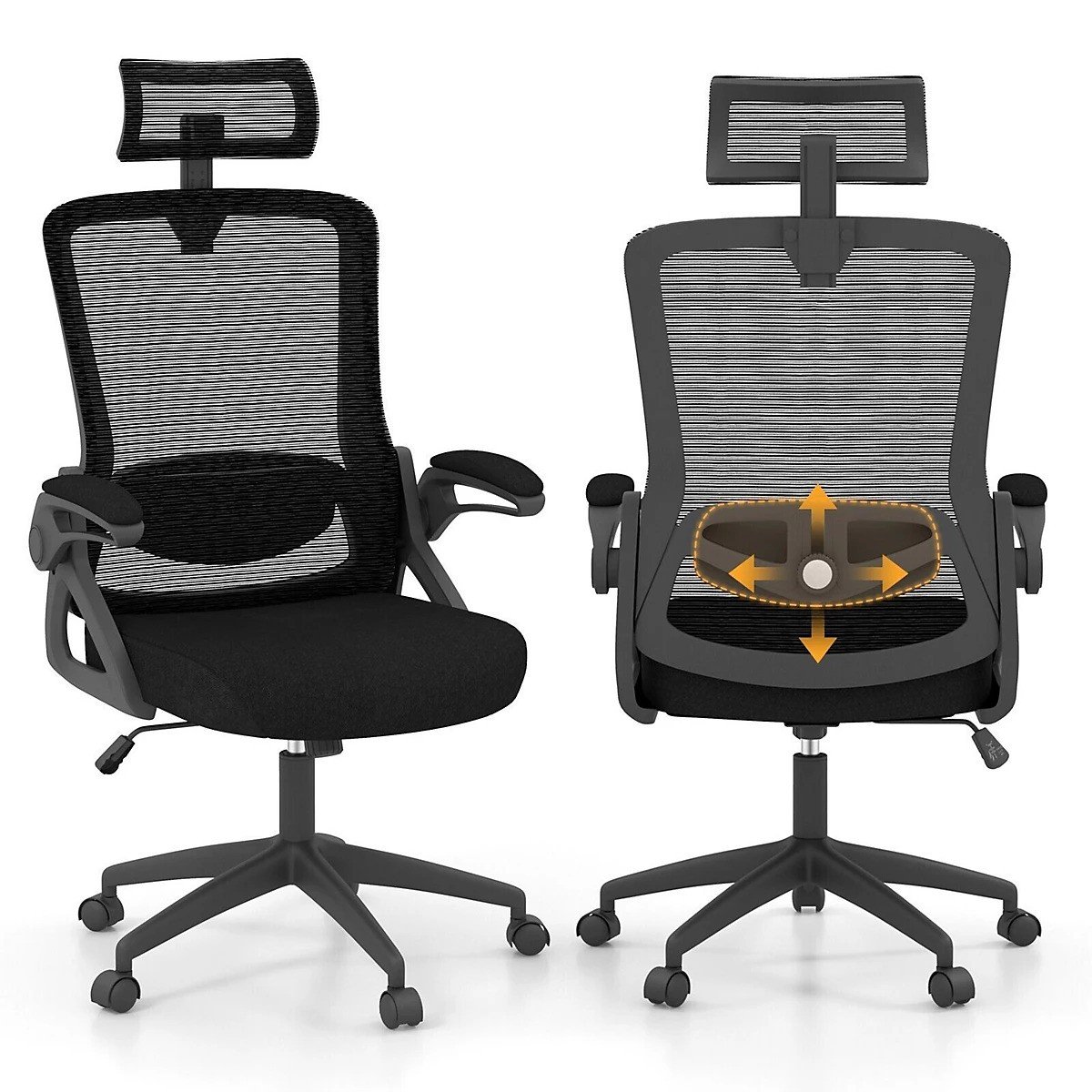

Understanding Your Costway 5T0329347 Chair
Before you start any repairs, it’s helpful to familiarize yourself with the main components of your chair. Knowing the name and function of each part will make the disassembly and reassembly process much smoother.
- Backrest: Provides support for your spine. It attaches to the seat plate.
- Seat Cushion: The part you sit on, attached to the seat plate.
- Armrests (Left and Right): Offer support for your arms and are bolted to the underside of the seat plate.
- Seat Plate/Mechanism: The metal plate under the seat cushion that houses the height and tilt adjustment levers.
- Gas Lift Cylinder: A pneumatic cylinder that allows you to adjust the chair’s height. It fits into the base and the seat plate.
- Telescopic Cover: A plastic sheath that covers the gas lift cylinder for a cleaner look.
- Star Base: The five-legged base at the bottom of the chair that provides stability.
- Casters (Wheels): The wheels that allow the chair to move. They plug into the ends of the star base.
How to Disassemble the Chair
Disassembling your chair correctly is the first step toward any successful repair or cleaning project. Gather a mallet and a set of Allen keys before you begin.
- Remove the Casters and Base: Turn the chair upside down or lay it on its side. The casters can usually be pulled straight out from the base. If they are stiff, gently wiggle them back and forth while pulling. Once the casters are off, the star base should slide off the gas lift cylinder. If it’s stuck, a few firm taps with a rubber mallet on the underside of the base where it meets the cylinder can help loosen it.
- Separate the Seat from the Gas Lift: Place the base and gas lift upright on the floor. To detach the seat assembly, you may need to strike the underside of the seat plate firmly with the mallet. Hit the area where the gas lift cylinder enters the mechanism. This can take several strong, deliberate taps to dislodge.
- Unscrew the Armrests: With the seat assembly upside down, use an Allen key to remove the bolts holding the armrests to the seat plate. Keep the bolts and any washers together for each armrest.
- Detach the Seat Plate: Locate the bolts that attach the seat plate to the underside of the seat cushion. Use the appropriate Allen key to remove them. This will separate the entire metal mechanism from the cushion itself.
Detailed Parts List and Diagram
Identifying the exact part you need is crucial for ordering replacements. Use the diagram below to pinpoint each component of your Costway 5T0329347 chair.
(A simple, labeled line-drawing diagram of an exploded office chair would be placed here, illustrating each part mentioned below.)
Parts List:
- P1: Backrest Assembly
- P2: Seat Cushion
- P3-L: Left Armrest
- P3-R: Right Armrest
- P4: Seat Plate / Control Mechanism
- P5: Gas Lift Cylinder
- P6: Telescopic Cylinder Cover (3 pieces)
- P7: 5-Star Base
- P8: Caster Wheel (Set of 5)
- S1: Armrest Bolts (Typically 4 per armrest)
- S2: Seat Plate Bolts (Typically 4)
- S3: Backrest Bolts (Typically 2-3)
Troubleshooting Common Issues
Many common chair problems have simple solutions. Here’s how to fix them.
- Chair Sinks or Won’t Stay Up: This is almost always due to a failed gas lift cylinder (P5). The internal seals have worn out, and the entire cylinder needs to be replaced.
- Wobbly Armrests: Check the armrest bolts (S1). They may have loosened over time. Tighten them with an Allen key. If the threads are stripped, you might need new bolts or a replacement armrest.
- Chair Doesn’t Roll Smoothly: Flip the chair over and inspect the casters (P8). Hair, carpet fibers, and other debris often get tangled around the axles. Clean them thoroughly. If a caster is cracked or broken, it should be replaced.
- A Squeaking or Creaking Noise: The source of the noise is usually the seat plate mechanism (P4) or where the gas lift meets the base. Try applying a silicone-based lubricant to all moving parts and connection points.
How to Reassemble the Chair
Once you have cleaned, repaired, or replaced the necessary parts, follow these steps to put your chair back together.
- Attach the Seat Plate: Place the seat cushion upside down. Align the seat plate (P4) with the pre-drilled holes on the bottom of the cushion and secure it with the appropriate bolts (S2).
- Bolt on the Armrests: Fasten the left and right armrests (P3-L, P3-R) to the underside of the seat plate using their bolts (S1). Tighten them firmly but avoid over-tightening.
- Prepare the Base: Insert the five casters (P8) into the star base (P7). They should click into place. Slide the telescopic cover (P6) over the gas lift cylinder (P5), then insert the cylinder’s narrow end into the center hole of the base.
- Connect the Seat to the Base: Lift the seat assembly and align the hole in the center of the seat plate with the top of the gas lift cylinder. Carefully lower the seat onto the cylinder. Sit on the chair and gently bounce to ensure a snug and secure fit.
Safety and Maintenance for Longevity
To keep your Costway chair in excellent shape, follow these tips:
- Regularly Tighten Bolts: Every few months, check and tighten all bolts (S1, S2, S3) to prevent wobbling.
- Clean the Casters: Periodically clean the wheels to ensure smooth rolling and prevent floor damage.
- Avoid Exceeding Weight Limits: Adhere to the manufacturer’s recommended weight capacity to avoid putting undue stress on the gas lift and base.
- Use Correct Cleaning Agents: Clean fabric or leatherette with appropriate cleaners to prevent material degradation.
Where to Order Replacement Parts
Finding original Costway replacement parts can sometimes be challenging. Here are a few places to look:
- Costway’s Official Website: Check the support or parts section on their site first.
- Universal Office Chair Parts: Many components like gas lifts, casters, and bases are standardized. You can often find universal replacements on Amazon, eBay, or dedicated office furniture parts websites. Just be sure to measure your existing parts (like the diameter of the gas lift) to ensure compatibility.
Your Chair, Restored
With this manual, you are now equipped to handle most repairs and maintenance for your Costway 5T0329347 office chair. Taking the time to understand its components and perform simple fixes not only saves you money but also reduces waste. A well-maintained chair will provide comfortable support for many years.
Frequently Asked Questions (FAQs)
Q: How do I know if my gas lift cylinder is a standard size?
A: Most office chairs use a standard gas lift cylinder size. To be sure, measure the diameter of the main cylinder body and its height. Universal parts suppliers will list these dimensions, allowing you to match them.
Q: My chair tilts to one side. What’s wrong?
A: This could be caused by a bent seat plate, an unevenly installed component, or a broken weld on the base. Disassemble the chair and inspect each part on a flat surface to identify the issue.
Q: Can I upgrade the casters on my chair?
A: Yes. As long as the stem of the new casters matches the size of the holes in your chair’s base (typically 11mm), you can upgrade to different types, such as rollerblade-style wheels for smoother rolling on hard floors.
